1x16 MEMS Optical Switch – High‑Performance Fiber Optic Switch for Reliable Signal Routing

Product Overview

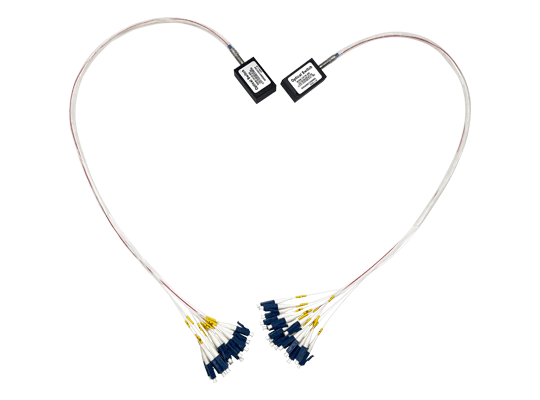

The 1x16 MEMS optical switch from Coreray (www.coreray.com) is a cutting‑edge fiber optic switch designed for demanding optical communication networks. Leveraging advanced Micro‑Electro‑Mechanical System (MEMS) technology, this compact switch enables seamless single‑channel to sixteen‑channel optical signal switching. It supports both 1310nm and 1550nm wavelengths, delivering an ultra‑low insertion loss of just 0.7 dB and a high return loss of 55 dB, ensuring minimal signal degradation and excellent signal integrity. Equipped with LC/PC connectors and a 0.5‑meter white loose tube pigtail (φ0.5mm), the device fits into a miniature footprint of 24.7×39.1×13.5 mm and operates reliably across a wide temperature range from –20°C to +70°C. As a leading optical switch China manufacturer, Coreray delivers this MEMS optical switch to meet the rigorous requirements of modern fiber networks, data centers, and test systems.

Key Features

·         Ultra‑Low Insertion Loss: Typical loss as low as 0.7 dB reduces signal attenuation and extends transmission distances.

·         High Return Loss & Low Crosstalk: Minimum 55 dB return loss and 55 dB crosstalk ensure clean, interference‑free signal paths.

·         Dual‑Wavelength Support: Seamlessly handles both 1310 nm and 1550 nm wavelengths, making it versatile for various network architectures.

·         Flexible Control Interfaces: Integrated TTL and RS232 interfaces allow easy integration into automated systems.

·         Wide Operating Temperature: Stable performance from –20°C to +70°C suits indoor and outdoor deployments.

·         Compact, Rugged Design: Aluminum alloy housing with dimensions of only 24.7×39.1×13.5 mm saves valuable rack space.

·         High Reliability: Built with premium MEMS chips and subjected to strict ISO9001 quality control.

Technical Specifications

Applications

·         Optical Add‑Drop Multiplexing (OADM): Dynamic channel routing in WDM systems.

·         Network Monitoring: Real‑time fiber line protection and performance supervision.

·         Fiber Testing: Signal routing for OTDR, optical power meters, and test equipment.

·         Component Testing: Evaluation of optical amplifiers, filters, and other devices.

·         Data Centers: Intra‑data center optical cross‑connects and redundancy switching.

·         CATV Networks: Optical signal distribution for cable television headends.

·         Fiber Sensing Systems: Signal acquisition in distributed sensing networks.

·         Telecom Equipment Integration: Embedded optical path control in communication systems.

Why Choose Coreray’s MEMS Optical Switch?

·         Uncompromised Quality: Every MEMS optical switch undergoes rigorous testing under ISO9001 guidelines.

·         Proven Stability: Imported MEMS chips and premium optical components guarantee long‑term, drift‑free operation.

·         Competitive Pricing: Direct factory supply eliminates middlemen, offering you the best value.

·         Customization Options: Need different wavelengths, connector types, or control interfaces? We tailor the product to your exact specifications.

·         Expert Support: Our technical team provides pre‑sales consultation and after‑sales service to ensure your success.

Conclusion
Choosing the right fiber optic switch is critical for building reliable, high‑performance optical networks. Coreray’s 1x16 MEMS optical switch combines low loss, high isolation, dual‑wavelength capability, and flexible control in a compact form factor, making it an ideal solution for data centers, test systems, and telecom infrastructure. As a trusted optical switch China manufacturer, we are committed to delivering products that exceed expectations. Contact us today to discuss your requirements or request a sample.
