Model: OSW-1×2-M20-380~780-20-10-SMA-01D

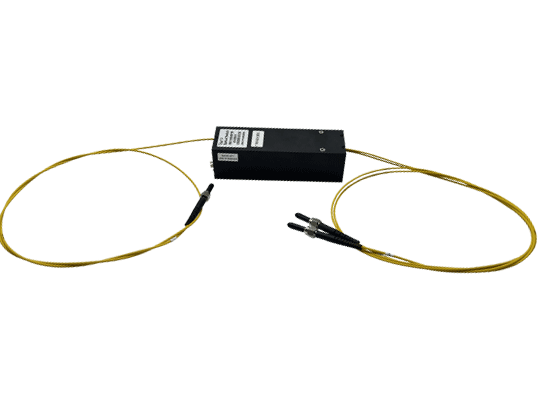

Premium Mechanical Optical Switch for Visible Spectrum Applications
As a leading fiber optic switch manufacturer in China, Guangxi Coreray Technology Co., Ltd. introduces our high-performance 1x2 Mechanical optical switch. Designed specifically for short-wavelength optical systems, this device utilizes precision motor drive technology to deliver reliable and low-loss optical path switching.
Product Overview
This fiber optic switch operates across a wide 380-780nm spectrum, making it ideal for visible light applications. Housed in a durable aluminum chassis and equipped with SMA905 connectors, it is the perfect solution for engineers requiring precise light path control.
Key Features
Broad Spectral Compatibility: Optimized for 380-780nm (Visible to NIR).
Low Insertion Loss: Typical loss ≤1.5dB ensures efficient signal transmission.
High Isolation: Return loss and crosstalk ≥35dB minimizes signal interference.
Dual Control Interface: Supports both TTL level and RS232 commands for flexible system integration.
Robust Reliability: Wide operating temperature (-20 to 70°C) and strict temperature cycling tests (-40°C to +85°C / 48Hr).
Customizable: Available with custom pigtail lengths and connector types to meet specific project needs.
Applications
Optical Communication Testing: Essential for automated test equipment.
Fiber Sensing Networks: Channel selection in distributed sensing systems.
Biomedical Equipment: Light path control in spectroscopy and laser therapy.
Industrial Automation: Optical signal switching in industrial controls.
R&D Laboratories: Flexible optical path configuration.
Technical Specifications
Optical Performance | Specification |
Operation Wavelength | 380 - 780 nm |
Insertion Loss (Typ.) | ≤ 1.5 dB |
Return Loss (Min.) | ≥ 35 dB |
Crosstalk (Min.) | ≥ 35 dB |
Switch Mode (Control) | RS232 + TTL |
Power Supply | 5 V |
Fiber Type | 200/220µm (Multimode) |
Dimensions (L×W×H) | 200 × 40 × 32 mm |
Operating Temperature | -20 to 70°C |
Storage/Cycle Test | -40°C to +85°C / 48Hr |
Connector Type | SMA905 |
Pigtail Length | 1.0 meters (Standard, customizable) |
Pigtail Jacket | 2.0mm diameter, Yellow jacket with sleeve marking |
RoHS | No (Standard, RoHS compliant available upon request) |

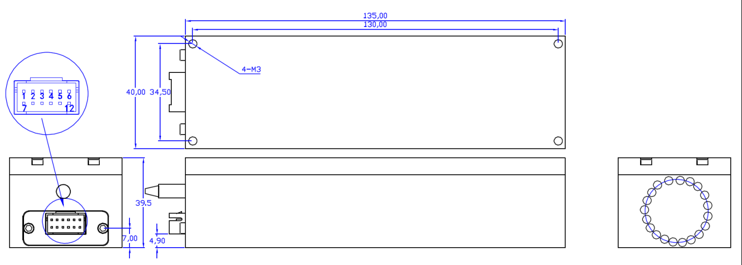

Mechanical Drawing & Structure
*(Image Placeholder: Insert product mechanical drawing here - alt text: "1x2 Mechanical optical switch mechanical drawing dimensions 200x40x32mm")*
Components Included:
Main Body: Aluminum alloy housing for heat dissipation and EMI protection.
Optical Engine: 6 x 200/220µm collimators aligned for 380-780nm.
Control Board: Integrated TTL + RS232 interface.
Accessories: 12P to DB9 female cable for easy connection.
Fiber Pigtails: Two 1-meter SMA905 patchcords included.
