Features
= Low Insertion Loss
= High Stability & Reliability
= Wide Wavelength Range
Applications
= Optical Network Protection
= System Monitoring
= Research And Development

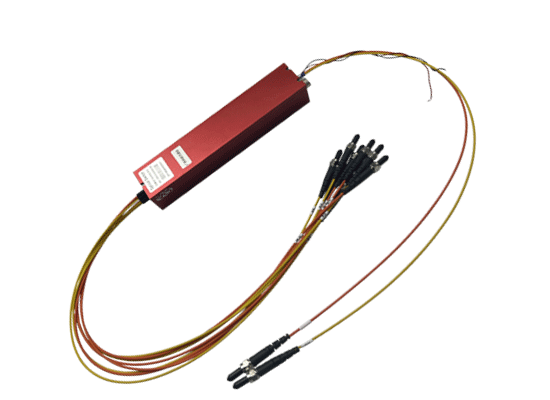

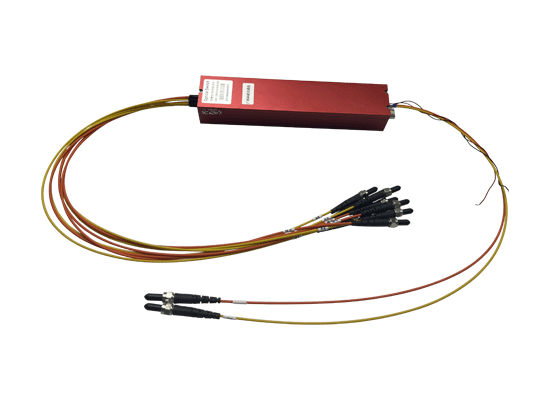

D1×4 optical switches are key components in the new generation of all optical networks, with industry-leading performance. With low insertion loss, small size, high reliability and good stability, it is widely used in Photoprotection systems, optical network testing and monitoring systems.
Specifications
Optical Performance/光学性能 | Specification | ||||
Operation Wavelength/工作波长 | nm | 450 650 850 1200 | |||
Insertion Loss /插入损耗 | Typ | dB | 1.50 | ||
Return Loss/回波损耗 | min | dB | 35 | ||
Cross-talk/串扰 | min | dB | 35 | ||
Switch Mode/控制方式 | USB | ||||
Power supply/驱动电压 | V | 5 | |||
Fiber Type/光纤类型 | Power supply/驱动电压 | 400/440 | |||
Dimensions/尺寸 | mm | 135X40X32 | |||
Operating Temperature/工作温度 | oC | -20~70 | |||
Temperature Cycling (Temperature Range / Cycles)/温度循环 | C / Hr | -40℃ to +85℃/48Hr | |||
Data Document Preparation/数据文档制备 | Specification | ||||
Individual Test Data Sheet Format/单独测试数据单格式 | Hardcopy | Neutral | |||
Electronic Media Test Data File Format/电子媒介测试文件格式 | MS-Word | Neutral | |||
RoHS Required/是否需要过RoHS | Yes/No | No | |||
Pigtail Type/尾纤类型 | 2mm Loose Tube, Orange, Light Blue | ||||
Pigtail Length/尾纤长度 | 0.5 | ||||
Pigtail Mark Method/尾纤标识方法 | Pigtail Color | Yellow, Numbered Sleeves | |||
Connector Type/连接头类型 | SMA905 Metal Ferrule | ||||

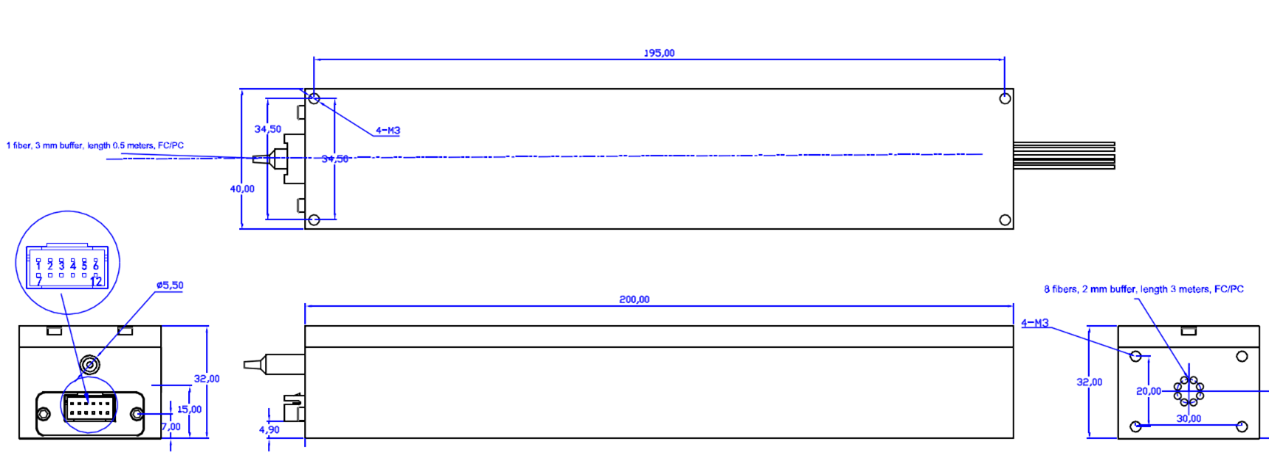

Size
