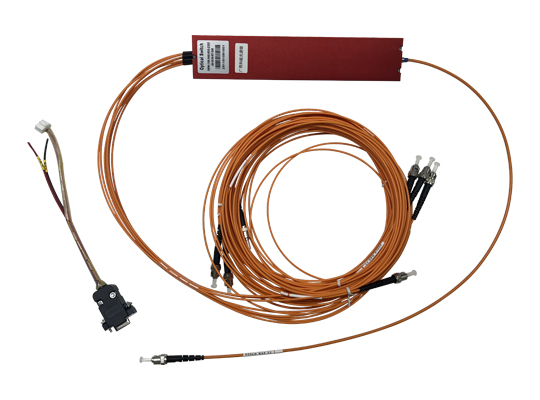

1×8 Optical Switch (400umr)

Wavelength:

400~800nm、850~1310nm、1260~1670nm

Application Area:

Ring network
Remote monitoring in optical network
Testing of fiber optical component

Product Features:

Low loss and high reliability
Parallel interface (TTL,RS485,RS232)
Modularized design
Epoxy-free in optical path

Download Contact Us

Product Details

Features

= Low loss and high reliability

= Parallel interface (TTL,RS485,RS232)

= Modularized design

= Epoxy-free in optical path

Applications

= Ring network

= Remote monitoring in optical network

= Testing of fiber optical component

Specifications

Optical Performance/光学性能			Specification/规格说明
Operation Wavelength/工作波长		nm	650 850 1310 1550 1650
Insertion Loss /插入损耗	Typ	dB	1.50
Return Loss/回波损耗	min	dB	35
Cross-talk/串扰	min	dB	35
Switch Mode/控制方式			RS232+TTL
Power supply/驱动电压		V	5
Fiber Type/光纤类型			400/440
Dimensions/尺寸		mm	2004032
Operating Temperature/工作温度		oC	-20~70
Temperature Cycling (Temperature Range / Cycles)/温度循环	C / Hr		-40℃ to +85℃/48Hr
Data Document Preparation/数据文档制备			Specification
Individual Test Data Sheet Format/单独测试数据单格式	Hardcopy		Neutral
Electronic Media Test Data File Format/电子媒介测试文件格式	MS-Word		Neutral
RoHS Required/是否需要过RoHS	Yes/No		No
Pigtail Type/尾纤类型			2mm Loose Tube, Orange
Pigtail Length/尾纤长度			8 inputs 0.5m, 1 output 3m
Pigtail Mark Method/尾纤标识方法	尾纤颜色		Yellow, Number Sleeve
Connector Type/连接头类型			ST

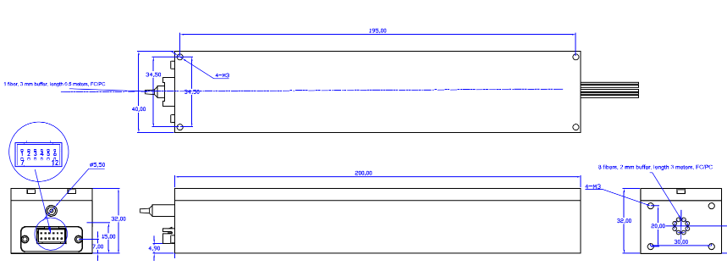

Dimensions


Ordering Information: OSW-1×N－A－B－C－D－E－F－G

Fiber Type

Test Wavelength

sheath

Fiber Length

Connector

Control port

Size

1 ~ 64

SM: SM, 9/125

M5: MM50/125

M6: MM62.5/125

Hi:Hi1060

850: 850nm

1310: 1310nm

1550: 1550nm

13/15:1310/1550nm

XX：othe

25:250um

90: 900um

20: 2.0mm

FA:fiber array

05: 50±5cm

10: 100±5cm

15: 150±5cm

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC

ST:ST/PC

01: TTL+RS232

02:TTL+RS485

03:USB

A:135X40X32

B:135X64X32

Empty Next： 1×64 Optical Switch
