 Features

• Low Insertion Loss

• Wide Wavelength Range

• High Crosstalk

• High Reliability

• Epoxy-free on Optical Path

• Latching

Applications

• Metropolitan Area Network

• R&D in Laboratory

• System Monitoring

• Configurable OADM

•

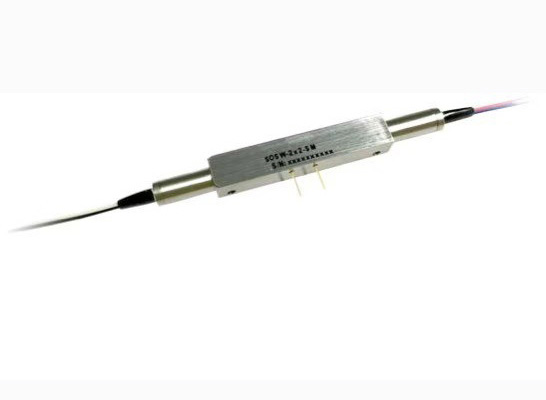

The 2x2 switch is all solid-state switching device without any moving parts. The switching of the optical light is realized by utilizing Faraday Effect.

This is achieved using a patent protected non-mechanical configuration with solid-state all-crystal design which eliminates the need for mechanical movement. The microsecond fiber optic switch is designed to meet the most demanding switching requirements of reliability, durability, fast response, and continuous high frequency switching operation.

 Specifications

*.All the specifications are based on the devices without connectors, and guaranteed over the operating temperature ranges, wavelength ranges and all polarization states.

**.  Specifications are subject to change without notice.

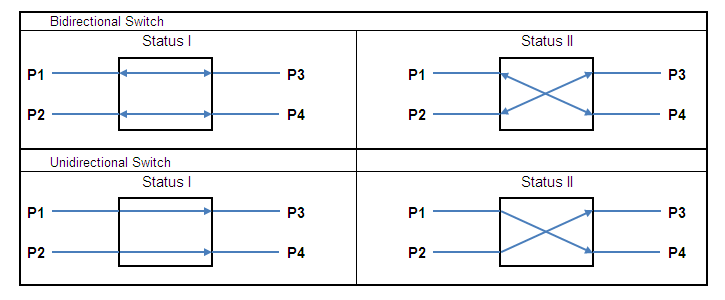

Functional Diagram

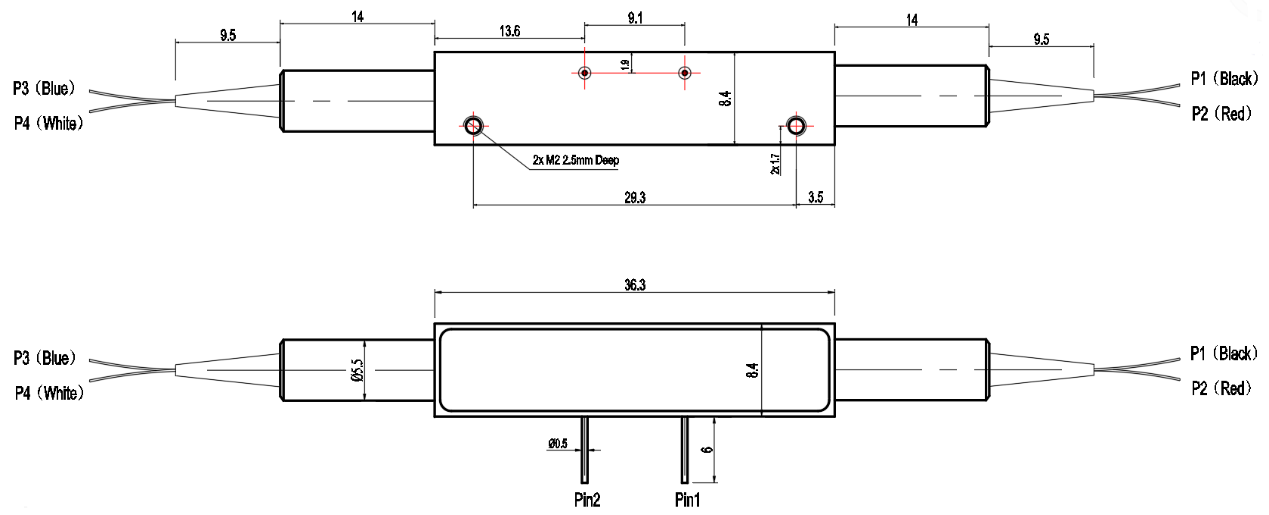

Mechanical Dimensions (mm)

  Electrical Driving Information

 Ordering Information: SSW-N1*2ABCDEF
