Features
Low Insertion Loss
Wide Wavelength Range
High Crosstalk
High Reliability
Epoxy-free on Optical Path
Latching
Applications
Optical blocking
Configurable operation
System Monitoring
Configurable OADM
The 1x2 switch is all solid-state switching device without any moving parts. The switching of the optical light is realized by utilizing Faraday Effect.
This is achieved using a patent protected non-mechanical configuration with solid-state all-crystal design which eliminates the need for mechanical movement. The microsecond fiber optic switch is designed to meet the most demanding switching requirements of reliability, durability, fast response, and continuous high frequency switching operation.
Specifications
Item | unit | 1x2 | ||
Wavelength | nm | 1310 ,1525 ~ 1565 | ||
Insertion Loss | dB | 0.90(Typ.); 1.20(Max) | ||
PDL | dB | 0.10(Typ.), 0.20(Max) | ||
Return Loss | dB | ≥ 50 | ||
Crosstalk | dB | ≥ 40 | ||
Extinction Ratio1 | dB | ≥18 | ||
Repeatability | dB | +/- 0.02 | ||
Durability | Cycles | > 10 Billions | ||
Switching Speed | μs | <150 | ||
Switching Type | n/a | Latching | ||
Operating Temperature | °C | -5 ~ 70 | ||
Storage Temperature | °C | -40 ~ 85 | ||
Maximum Optical Power | mW | 300 | ||
Dimension | mm | 28 × 8.4× 8.4 | ||
Fiber Type | NA | SMF-28 | ||
*.All the specifications are based on the devices without connectors, and guaranteed over the operating temperature ranges, wavelength ranges and all polarization states.

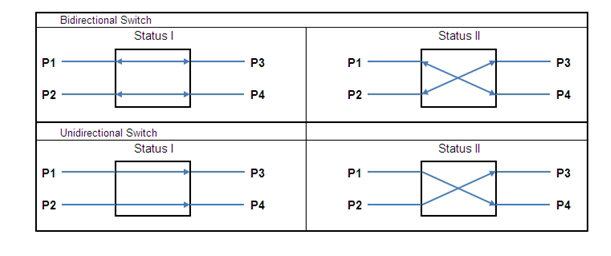

Functional Diagram
Mechanical Dimensions (mm)
Electrical Driving Information
Optical Patch | Pin1 | Pin2 |
P1-P2 | GND | 3V Pulse |
P1-P3 | 3V Pulse | GND |
Ordering Information: NSW-N1*2ABCDEF
A | B | C | D | E | F | G |
Type | Mode | Voltage | Wavelength | Fiber Diameter | Fiber Length | Connector |
B：Bidirectional U：Unidirectional | SM:9/125um | 2:2.5V 3:3V 5:5V | 13: 1310nm 15: 1550nm | 25:250um 90:900um | 05:0.5m 10:1.0m 15:1.5m | OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
