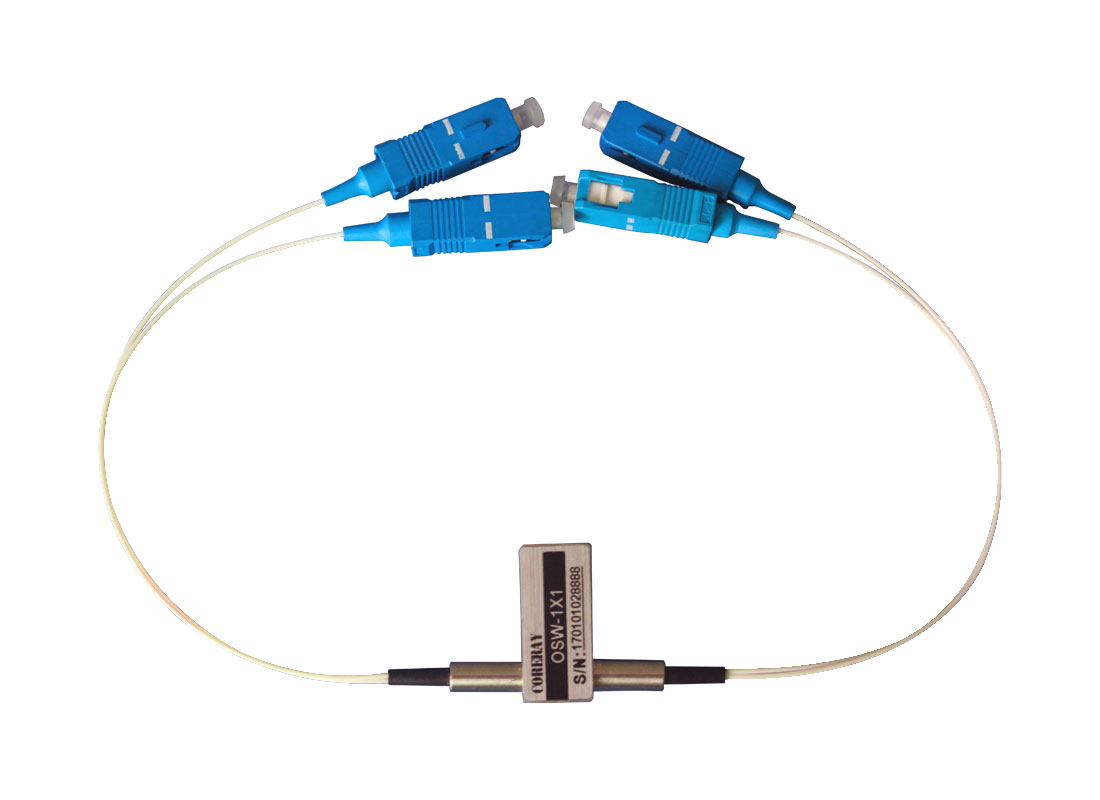

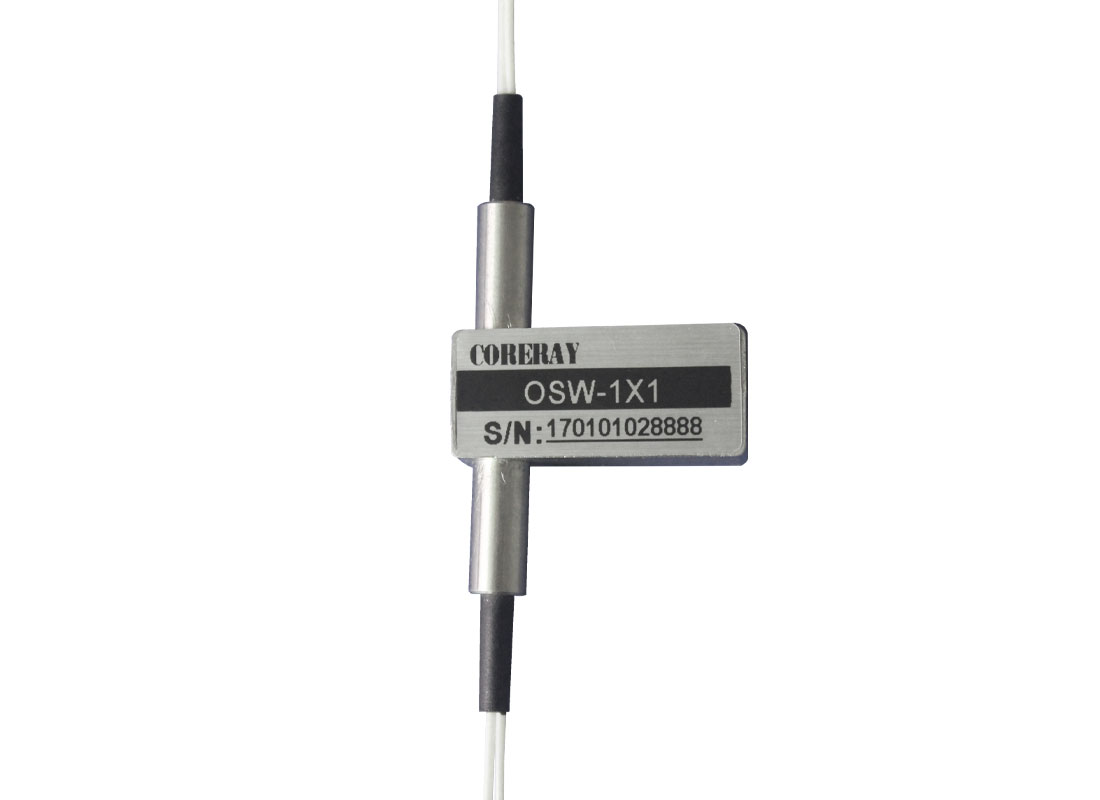

◇Features
l Low Insertion Loss
l Wide Wavelength Range
l Low Crosstalk
l High Stability, High Reliability
l Epoxy-free on Optical Path
l Latching and Non-latching
◇ Application
lMetropolitan Area Network
lR&D in Laboratory
lSystem Monitoring
lConfigurable OADM
◇ Performance
Parameters | OSW-1×1 | ||
Wavelength Range | nm | 650～1310 | 1260～1670 |
Testing Wavelength | nm | 650/780/850/980/1064/1310 | 1310/1490/1550/1625/1650 |
Insertion Loss | dB | Typ:0.6,Max:1.0 | Typ:0.5 ,Max:0.8 |
Return Loss | dB | ≥35 | ≥50 |
Crosstalk | dB | ≥40 | ≥50 |
ER | dB | >18 | |
PDL | dB | ≤0.05 | |
WDL | dB | ≤0.25 | |
TDL | dB | ≤0.25 | |
Repeatability | dB | ≤±0.02 | |
Power supply | v | 3.0 or 5.0 | |
Lifetime | Cycle | ≥107 | |
Switch Time | ms | ≤3 | |
Transmission Power | mW | ≤500 | |
Operation Temperature | ℃ | -40～+85 | |
Storage Temperature | ℃ | -40～+85 | |
Weight | g | 16 | |
Dimension | mm | (L)27×(W)12.6×(H)8.5(±0.2) | |

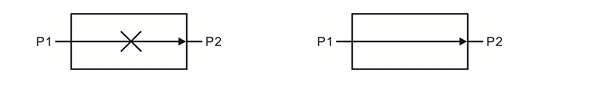

◇ Route States
◇ Pins
Optical Path | Electric Drive | Sensor Status | |||||
1×1 | 1 | 5 | 6 | 10 | 3－4,7－8 | 2－3,8－9 | |
Latching | P1-/-P2 | +5V | GND | N/A | N/A | CLOSE | OPEN |
P1---P2 | N/A | N/A | GND | +5V | OPEN | CLOSE | |
Non- Latching | P1-/-P2 | N/A | N/A | N/A | N/A | CLOSE | OPEN |
P1---P2 | N/A | +5V | GND | N/A | OPEN | CLOSE | |
◇ Electrical parameters
Voltage | current | Resistor | |
5V Latching | 4.5~5.5 | 36~44mA | 125Ω |
5V Non-Latching | 4.5~5.5 | 26~32mA | 175Ω |
3V Latching | 2.7~3.3 | 54~66mA | 50Ω |
3V Non-Latching | 2.7~3.3 | 39~47mA | 70Ω |

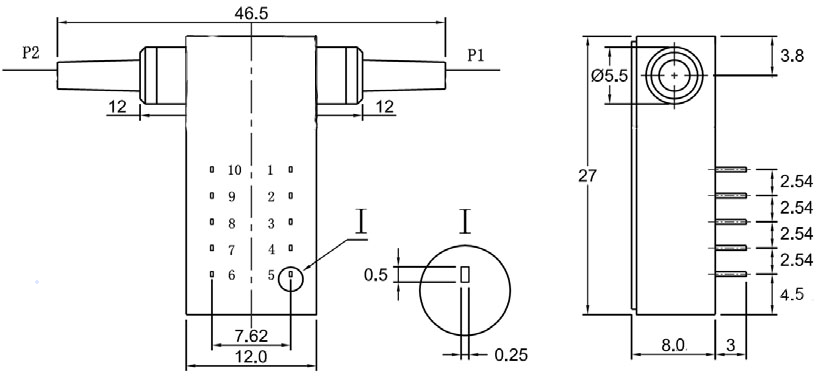

◇ Dimensions
◇ Ordering Information：OSW－1×1－A－B－C－D－E－F－G
A | B | C | D | E | F | G |
Fiber Mode | Wavelength | Voltage | Control Model | Fiber Diameter | Fiber Length | Connector |
P3:PM1300 P4:PM14XX P5:PM1550 | 85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm | 3: 3V 5: 5V | L: Latching N:Non-Latching | 25:250um 90:900um | 05:0.5m 10:1.0m 15:1.5m | OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
