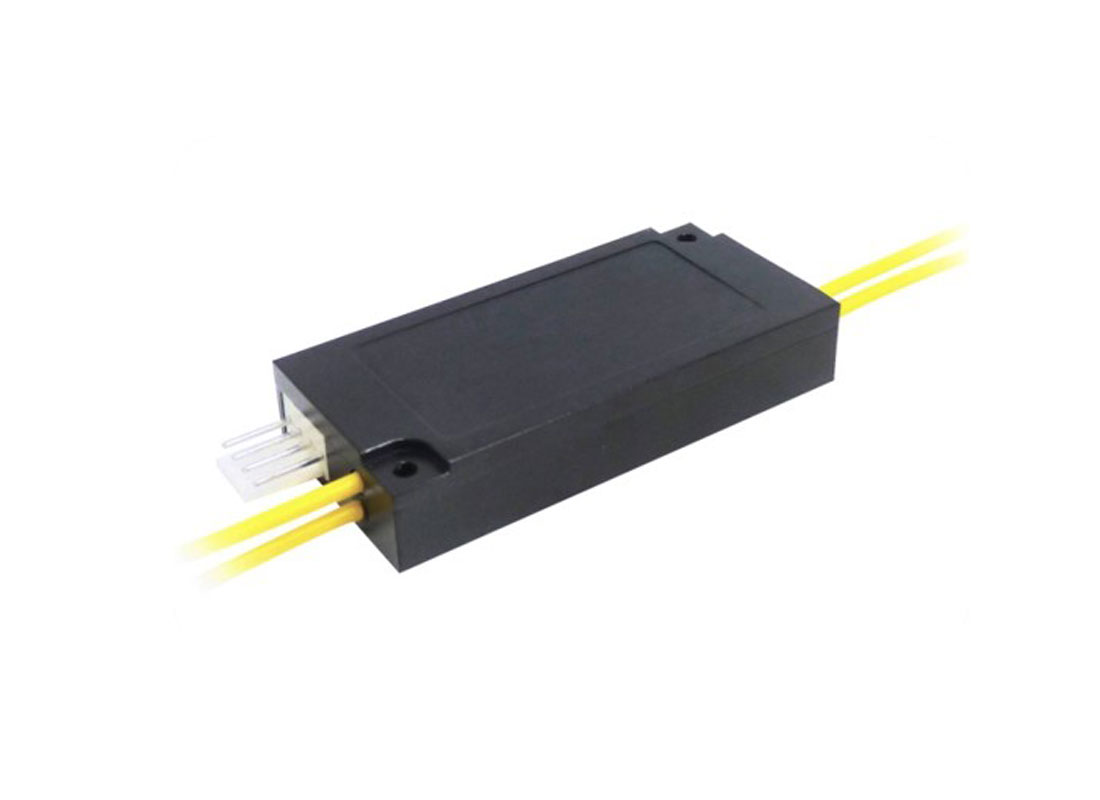

◇Features
l Low Insertion Loss
l Wide Wavelength Range
l Low Crosstalk
l High Stability, High Reliability
l Epoxy-free on Optical Path
l Latching and Non-latching
◇ Application
l Metropolitan Area Network
l R&D in Laboratory
l System Monitoring
l Configurable OADM
◇ Performance
Parameters | 1X1 ,D1X1 ,1X2,D1X2,2X2B ,D2X2B | |
Wavelength Range | nm | 850&1310 1260～1670 |
Testing Wavelength | nm | 850/1310/1490/1550/1625/1650 |
Insertion Loss | dB | Typ:0.8,Max:1.0 |
Return Loss | dB | SM≥50, MM≥35 |
Crosstalk | dB | SM≥45,MM≥30 |
PDL | dB | ≤0.05 |
WDL | dB | ≤0.25 |
TDL | dB | ≤0.25 |
Repeatability | dB | ≤±0.02 |
Power supply | v | 5.0 |
Lifetime | Cycle | ≥109 |
Switch Time | ms | ≤4 |
Transmission Power | mW | ≤500 |
Operation Temperature | ℃ | -20～+70 |
Storage Temperature | ℃ | -40～+85 |
Weight | g | 25 |
Dimension | mm | (L)55×(W)26×(H)12 |

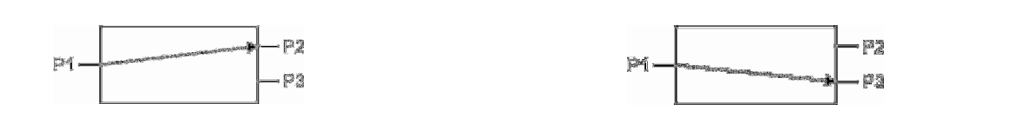

◇ Route States
◇ Pins
1X2C | Optical Path | Electric Drive | |||
Pin 1 | Pin 2 | Pin3 | Pin4 | ||
TTL | P1-P2 | +5V | GND | Hight | - |
P1-P3 | +5V | GND | Low | - | |

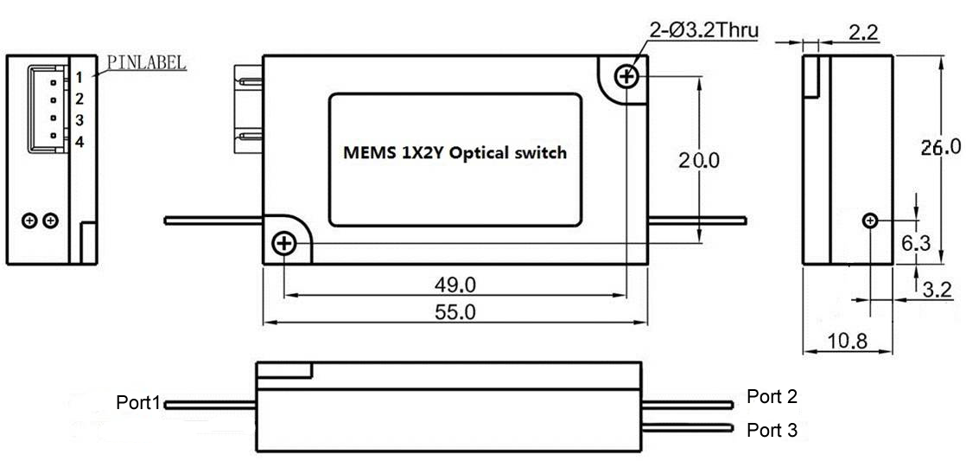

◇ Dimensions
◇ Ordering Information:SMSW－A－B－C－D－E-F
A | B | C | D | E | F |
Mode | Fiber | Wavelength | Fiber Diameter | Fiber Length | Connector |
1X1 1X2 2X2B D 1X1 D 1X2 D 2X2B | SM:9/125um M5:50/125um M6:62.5/125um | 13: 1310nm 14: 1490nm 15: 1550nm 16: 1650nm 13/15:1310/1550nm | 25:250um 90:900um 20:2.0mm | 05:0.5m 10:1.0m 15:1.5m | OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
