Operating Wavelength: 425-900nm
Fiber Type: Multimode 200/220μm
Optical Path: 1×2
Input Port:0.9mm jacket, length >80cm, SMA connector
Output Port 2:3mm outer PVC and inner armored jacketed fiber, FC/PC connector, length 1.5m (Note⁴)
Product Parameters：
Optical Performance | Specification | ||
Operation Wavelength | nm | 400-900 | |
Insertion Loss | Typ | dB | 1.00 |
Polarization Dependent Loss | max | dB | 0.10 |
Wavelength Dependent Loss | max | dB | 0.50 |
Temperature Dependent Loss | max | dB | 0.30 |
Repeatability | max | dB | 0.10 |
Return Loss | min | dB | 30 |
Cross-talk | min | dB | 60 |
Lifetime | 10 9 | ||
Switching time | ms | 12 | |
Transmission power | max | mw | 2000 |
Switch Mode | RS232 | ||
Dimensions | mm | 135X54X35 | |
Operating Temperature | oC | -20~70 | |
Storage Temperature | oC | -40~85 | |
Package Dimension | mm | 345x285x72 | |

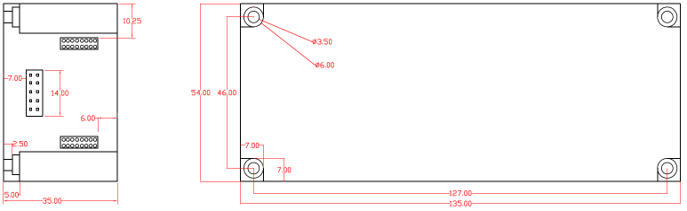

Dimension ：
