Features
l Low Insertion Loss
l High Return Loss
l High Extinction Ratio
l High Reliability
l High Stability
Applications
l Optical Fiber Amplifiers
l Test Instrument
l Fiber Sensor
l Research
l Fiber Laser
Specifications | ||||||||
Parameter | Unit | Value | ||||||
Connector Type | - | FC, SC, LC | ||||||
Center Wavelength | nm | 1550 | 1310 | 1060 | 980 | 850 | 780 | |
Max. Insertion Loss | dB | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | 0.8 | |
Min. Extinction Ratio at 23℃ | dB | 23 | 23 | 23 | 23 | 22 | 22 | |
Min. Return loss | UPC Type | dB | 50 | |||||
APC Type | dB | 60 | ||||||
Fiber Type | - | PM Panda fiber | ||||||
Key Orientation | - | Slow Axis | ||||||
Tolerance for Axis Alignment | deg | ±3 | ||||||
Operating Temperature | ℃ | -20~+70 | ||||||
Storage Temperature | ℃ | -40~+85 | ||||||
The default connector key is aligned to slow axis. | ||||||||
Ordering Information:PMJP-A-B-C-D-E-F-G
A | B | C | D | E | F | G |
Wavelength | Axis Alignment | Fiber Type | Pigtail Type | Fiber Length: | Connector for Input | Connector for Output |
1550=1550nm 1310=1310nm 1064=1064nm 980=980nm ...... | S=Slow axi F=Fast axis | 001=PM1550 002=PM1310 003=PM980 SSS=Specify | 0=bare fiber 1=900μm loose tube 2=2.0mm loose tube 3=3.0mm loose tube | 0.75=0.75m 1.0=1m 2.0=2m ...... 20=20m S=Specify | 0=FC/UPC 1=FC/APC 2=SC/UPC 3=SC/APC N=None S=Specify | 0=FC/UPC 1=FC/APC 2=SC/UPC 3=SC/APC N=None S=Specify |
Part No. Example：PMJP-980-S-003-0-0.75-11

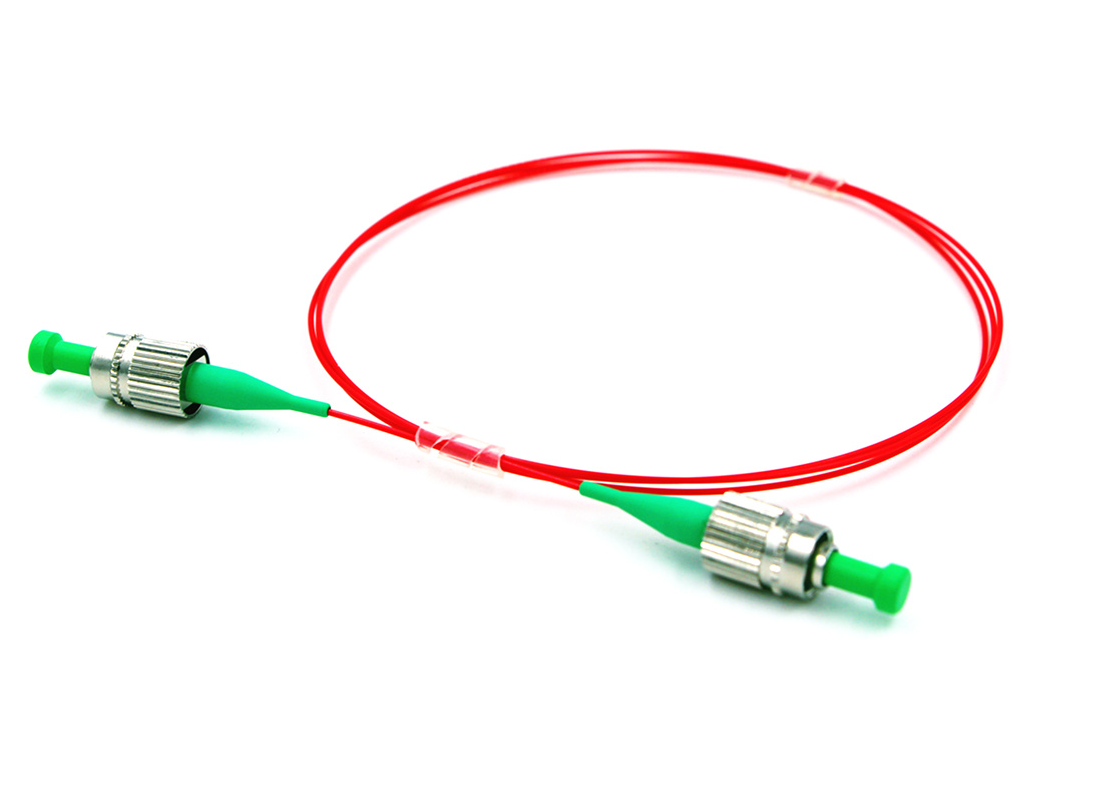

Description：980nm PM Fiber Patchcord, Slow axis, PM980 fiber, bare fiber, 0.75m fibre length, FC/APC connector.
For Custom Parts, please provide detailed description for your requirement.
