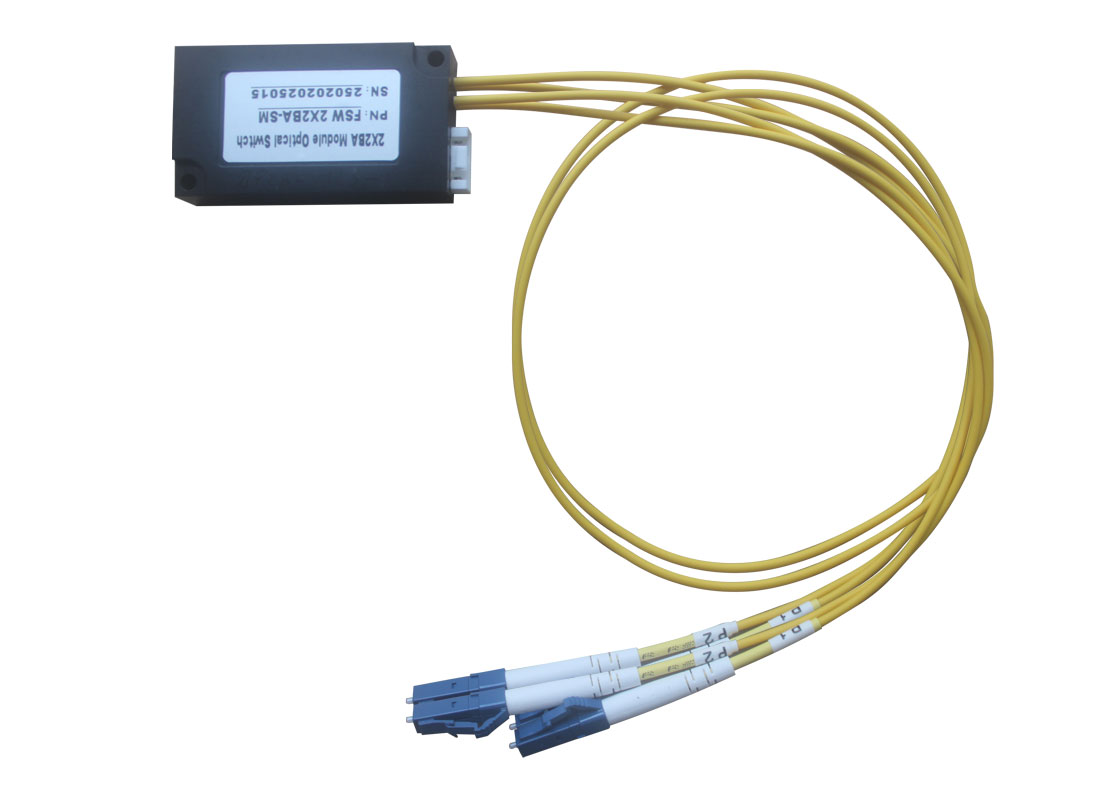

MEMS Mini 2x2 Fiber Optical Switch
The MEMS Mini 2x2 Fiber Optical Switch uses a micro-mirror, moving-in and-out optical paths, uniquely featuring high extinction, high stability over a wide temperature range, and small size. The MEMS is insensitive to moisture and ESD and has no short and long-term drifts.
Two pin layouts and low driving voltage are available for optical paths switch.
Features
l High Reliability
l Direct voltage driving
l Low Insertion Loss
l Ultra Small size
l ESD Insensitive
Applications
l Phase-Array Antennas
l Instrumentation
Specifications
Parameters | Unit | MEMSTD |
wavelength | nm | 850,1310,1520~1580,1280~1340 |
Insertion Loss* | dB | Typ: 0.6 Max:1.2 |
Return Loss | dB | >50 |
Crosstalk | dB | >50 |
Switch Time | ms | <20 |
Switch Type | ||
Polarization Dependent Loss | dB | 0.10 |
Repeatability | dB | ±0.02 |
Operation Temperature | ℃ | -5～+70 |
Storage Temperature | ℃ | -40～+85 |
Weight | g | 10 |
Dimension | mm | (L)12.0×(W)6.8×(H)5.6 (±0.2) |
*: Excluding connectors.
Electrical parameters
Parameters | Min. | Typical | Max. | Unit |
Switch Voltage | 0 | 60 | V | |
Switch Current | 19 | 20 | 21 | mA |
1X2 | Optical Path | Electric Drive | |||
Pin 4 | Pin 3 | Pin2 | Pin1 | ||
TTL | P1-P2 | +5V | GND | Hight | - |
P1-P3 | +5V | GND | Low | - | |

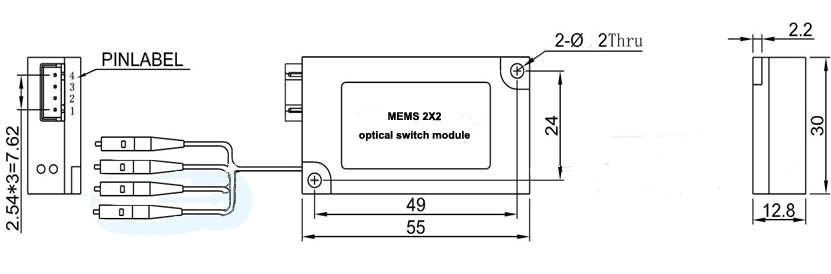

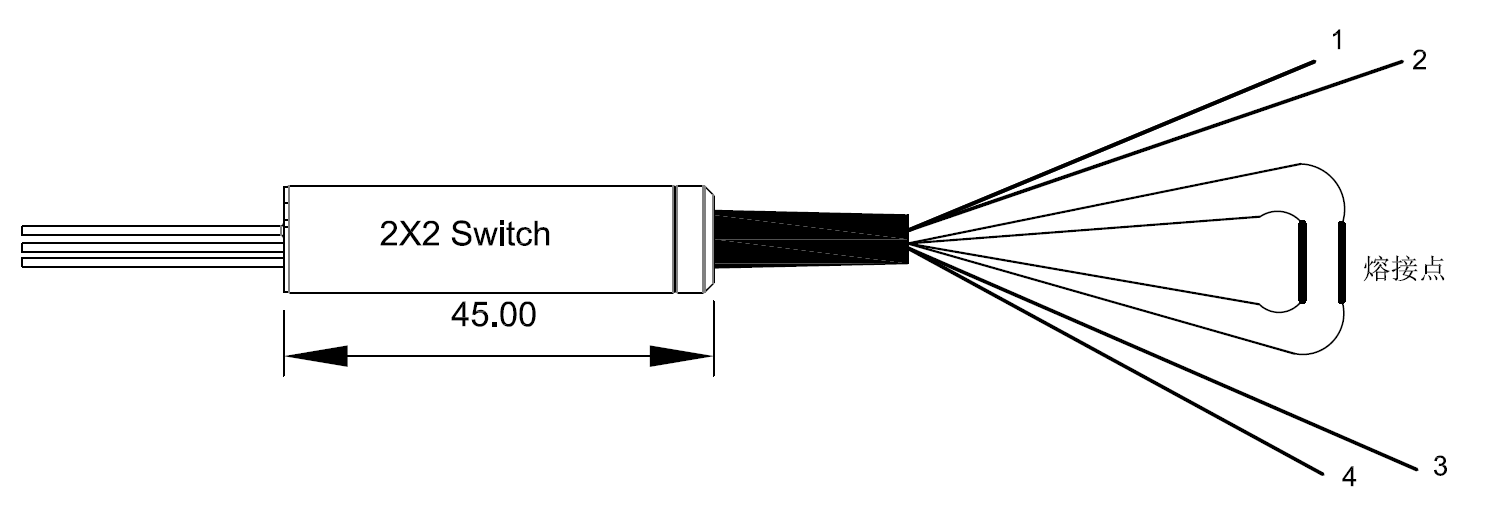

Dimension (mm)
Ordering Information: MSW－A－B－C－D－E－F
A | B | C | D | E | F | G |
Mode | Wavelength | Fiber Type | Fiber Diameter | Fiber Length | Connector | |
11:1X1 12:1X2 22: 2x2 22B:2X2B D11:D 1X1 D12:D 1X2 D22:D2X2B | 85:850nm 13: 1310nm 15: 1550nm | SM:SMF-28 M5:50/125um M6:62.5/125um PM13:PM1310 PM15:PM1550 | 25:250um 90:900um 20:2000um | 05:0.5m 10:1.0m 15:1.5m | OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC | T:TO46 M:Module
|
