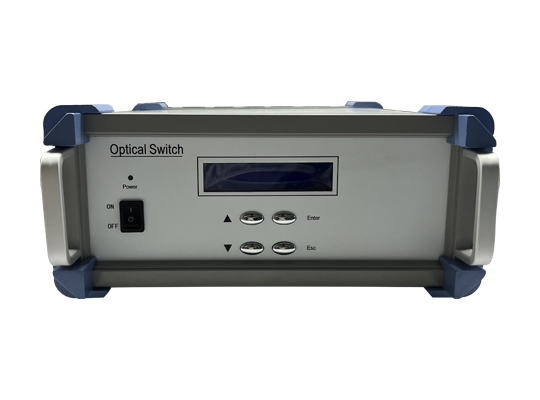

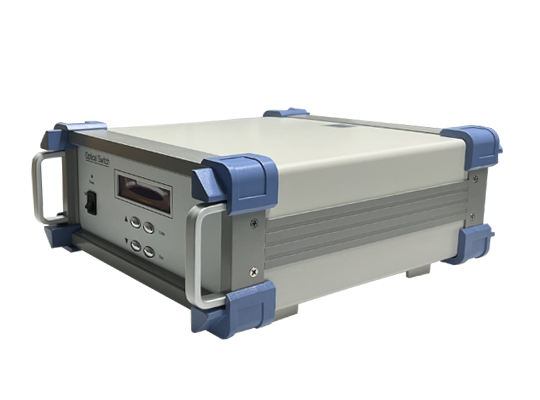

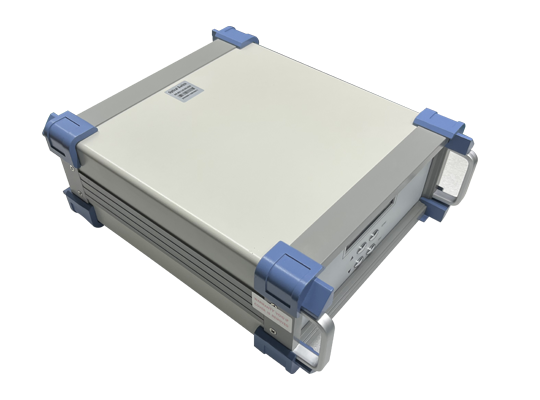

1×8 Desktop Optical Switch (PM)

Wavelength:

400~800nm、850~1310nm、1260~1670nm

Application Area:

Ring network
Remote monitoring in optical network
Testing of fiber optical component

Product Features:

Low loss and high reliability

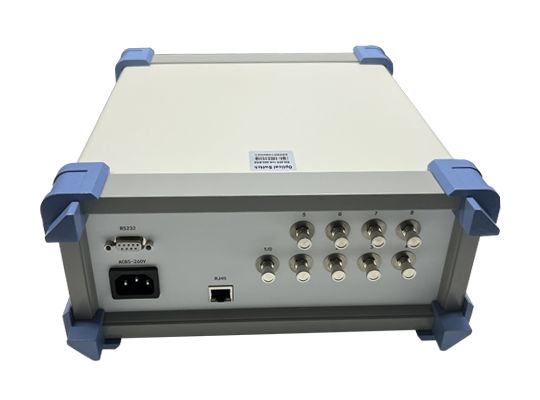

Parallel interface (RS232,RJ45)
Modularized design
Epoxy-free in optical path

Download Contact Us

Product Details

Features

·Low loss and high reliability

·Parallel interface (RS232,RJ45)

·Modularized design

·Epoxy-free in optical path

Applications

·Ring network

·Remote monitoring in optical network

·Testing of fiber optical component

Specifications

Parameters		OSW-1×8
Insertion loss	dB	1<N≤32
		Typ:0.8 Max:1.0
Wavelength range	nm	200~850 or 850~1310	1260~1660
Testing wavelength	nm	532/650/780/850/980/1300	1310/1490/1550/1650
Return loss	dB	SM≥55、MM≥35
Crosstalk	dB	≥-80
ER	dB	≥18
WDL	dB	≤0.25
TDL	dB	≤0.30
Repeatability	dB	≤±0.05
Lifetime	cycle	10⁷
Optical input power	mW	≤1000
Switching time	ms	≤10 (Sequence switch time of adjacent channel)
Operating temperature	°C	-20~+70
Storage temperature	°C	-40~+85
Power supply	V	AC 220V
Size	mm	290200110

Ordering Information ：OSW-1XN-A-B-C-D-E

Chanel

Fiber

Wavelength

Type

Power

Connector

1~32

PM78：PM780

PM85：PM850

PM13: PM1310

PM15: PM1550

850: 850nm

1310: 1310nm

1550: 1550nm

13/15: 1310/1550nm

S: Slow axis

S22: Single220V

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC
