Product Description
This is achieved using patented electro-optical configuration featuring clean fast response without ripples and temperature compensation for outdoor operation. The NSP fiber optic switch is designed to meet the most demanding switching requirements of continuous operations over 20 years and non-mechanical ultra-high reliability.
switch is controlled by 5V TTL signals with a specially designed electronic driver having performance optimized for various repetition rate.
Features
l Solid-State
l High speed
l Ultra-high reliability
l Low insertion loss
l Compact
Applications
l Optical blocking
l Configurable operation
l Instrumentation
Performance Specifications
Nanosecond Switches | Min | Typical | Max | Unit | |
Insertion Loss [1] | 1900-2200nm | 0.8 | 1.8 | dB | |
1260-1650nm | 0.6 | 1.0 | |||
960-1100nm | 0.9 | 1.2 | 1.8 | ||
780-960nm | 1.2[1b] | 1.6 | 2.5 | ||
520–780nm | 1.5[1b] | 2.5 | 3.5 | ||
Cross Talk [2] | Single stage | 18 | 25 | 35 | dB |
Dual stage | 30 | 36 | 45 | ||
PDL (SMF Switch only) | 0.15 | 0.3 | dB | ||
PMD (SMF Switch only) | 0.1 | 0.3 | ps | ||
ER (PMF Switch only) | 18 | 25 | dB | ||
IL Temperature Dependency | 0.25 | 0.5 | dB | ||
Return Loss | 45 | 50 | 60 | dB | |
Optical transition time [3] | 40 | 90 | ns | ||
Driver Repeat Rate | 200kHz driver | DC | 200 | kHz | |
1000kHz driver | DC | 1000 | |||
Optic power Handling [4] | Normal power version | 300 | mW | ||
High power version | 5 | W | |||
Operating Temperature | Standard | -5 | 75 | ℃ | |
Large range version | -30 | 85 | ℃ | ||
Storage Temperature | -40 | 100 | |||
[1] Measured without connectors. For other wavelengths, please contact us.
[2] Cross talk is measured at 500kHz, which may be degraded at the higher repeat rate.
[3] It is defined as the rising or fall time between 10% and 90% of optical intensities.
[4] Defined at 1310nm/1550nm. For the shorter wavelength, the handling power may be
reduced, please contact us for more information.
[1b] NPLC version available for high power and low loss that incorporating fiber core
enlargement (expensive).

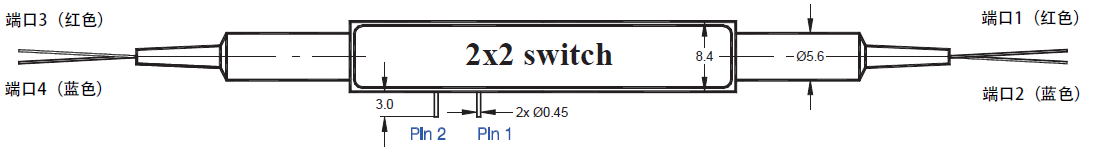

Mechanical Dimensions (Unit: mm)
Optical Path Driving Table
2x2 Optical Path | TTL Signal |
Port 1→Port 3，Port 2→Port 4 | L(< 0.8V) |
Port 1→Port 4，Port 2→Port 3 | H( > 3.5V) |
Typical Speed and Repetition Measurement
1MHz Response 1MHz Response
Note: Top Traces are electrical; Bottom traces are optical
Typical Bandwidth Measurement
订购信息: A－B－C－D－E－F－G－H－I
A | B | C | D | E | F | G | H | I | |
Type | Wavelength | Grade | Repetition Rate | Fiber Type | Fiber Length | Connector [1] | |||
NPSW = Normal power version
NPHW = High Power version
NPLC[2] = Large Core version for high power and low loss
| 11=1x1 12=1x2 22=2x2 | 1=1060 2=2000 3=1310 4=1480 5=1550 6=1625 7=780 8=850 E=650 F=550 G=400 L=1565-620 0= Special | 1= Single stage 2= Dual stage | 1=200kHz 2=1MHz | 1=SMF-28 2=HI1060 3=HI780 4=PM1550/400 5=PM1550/250 8=PM850 9=PM980 0= Special | 1= Bare fiber 3= 900um loose tube 0= Special | 1=0.25m 2=0.5m 3=1.0m 0= Special | 1=无 2=FC/PC 3=FC/APC 4=SC/PC 5=SC/APC 6=ST/PC 7=LC/PC 8=LC/APC 0= Special | |
[1]: Please contact the sale about the high power connector for NPHW version.
[2]: NPLC version is available only for wavelength shorter than 780nm.
