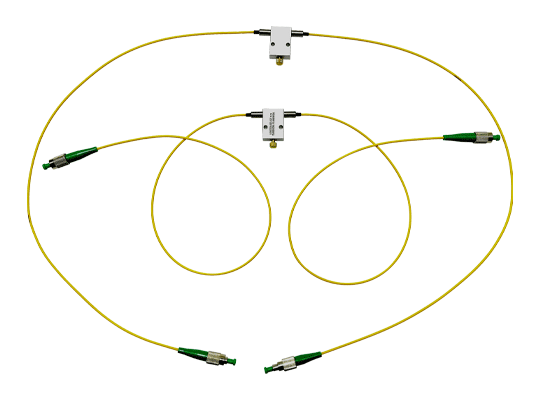

    The VOASM15/162005FA is a high-performance, manually adjusted variable optical attenuator (VOA) meticulously engineered by Coreray for precision fiber optic communication systems. This compact device is designed for single-mode fibers and operates across the critical 1550nm and 1625nm wavelength bands. Featuring premium FC/APC connectors and a durable, corrosion-resistant aluminum alloy housing, this fiber optic attenuator ensures reliability and stability in a variety of demanding applications, including fiber optic network testing, optical measurement systems, and fiber optic sensing.

Core Advantages

·         Dual-Wavelength Compatibility: Designed to support both 1550nm and 1625nm wavelengths, this optical attenuator meets diverse system testing needs without requiring device replacement, enhancing testing efficiency.

·         Ultra-Low Insertion Loss: With a typical insertion loss of only 0.8dB, it effectively minimizes signal attenuation, ensuring high-quality optical signal transmission.

·         High Return Loss: A minimum return loss of 55dB significantly reduces interference from reflected signals, improving overall system stability and performance.

·         Robust & Reliable Housing: The aluminum alloy case provides excellent resistance to electromagnetic interference and corrosion, making this manual optical attenuator suitable for harsh field environments.

·         Standardized Interface: Equipped with industry-standard FC/APC connectors, it offers strong compatibility and seamless integration with most existing optical communication equipment.

Technical Specifications

1. Optical Performance Parameters

2. Mechanical & Environmental Parameters

·         Connector Type: FC/APC (with Dust Caps)

·         Fiber Type: Single-Mode Fiber (SMF-28e+ compatible)

·         Pigtail Specification: 2mm diameter jacket, 0.5m length

·         Pigtail Color: Yellow (Standard)

·         Housing Material: Aluminum Alloy (Anodized)

·         Dimensions (LxWxH): 27mm × 12.6mm × 8.5mm

·         Operating Temperature: -20℃ to +70℃ (Industrial Grade)

·         Storage Temperature: -40℃ to +85℃ (48-hour cycle tested)

·         Relative Humidity: 5% to 95% (Non-condensing)

3. Component Materials & Quality Control

Key Application Scenarios

1. Fiber Optic Communication Network Testing

During the installation and maintenance of fiber optic systems, the VOASM15/162005FA manual optical attenuator is ideal for simulating attenuation across different fiber lengths. It helps engineers test system performance under various loss conditions, ensuring stability in real-world environments, particularly for metro and access networks.

2. Optical Transceiver Production Testing

Manufacturers require precise control over parameters like transmitter power and receiver sensitivity. This variable fiber optic attenuator provides stable, controllable attenuation, creating a standard test environment to ensure every product meets stringent quality standards.

3. Fiber Optic Sensing Systems

In applications such as security monitoring and structural health monitoring, precise control of optical signal strength is crucial. This attenuator delivers stable performance, ensuring the accuracy and reliability of sensing systems in complex field environments.

4. Laboratory Research & Development

Universities and research institutions need high-precision attenuation for experimental platforms. With its high accuracy and stability, this FC/APC attenuator is an excellent choice for R&D in new optical communication technologies.

Product Usage Instructions

1. Preparation for Installation

1.    Inspect the packaging to ensure the product model matches your order.

2.    Prepare necessary tools: fiber optic cleaning pen, anhydrous ethanol, lint-free wipes.

3.    Ensure the installation environment meets the operating conditions: Temperature -20℃~70℃, Humidity 5%~95% (non-condensing).

2. Connection Procedure

1.    Clean the end face of the FC/APC connector using a fiber optic cleaning pen. Ensure no dust or stains are present.

2.    Connect one end of the attenuator to the output port of the light source/transmitter and the other end to the input port of the receiver.

3.    Gently tighten the connector to ensure a secure connection. Avoid over-tightening to prevent damage.

4.    Power on the optical devices. Observe the reading on the optical power meter and adjust the attenuation knob (if applicable) to set the desired value.

3. Precautions

1.    Avoid using the device in dusty, humid, or corrosive environments to prevent performance degradation.

2.    Handle with care during connection and disconnection to avoid damaging the connector end face.

3.    Clean the connector end face regularly; it is recommended after every 10 uses or if abnormal signal attenuation is observed.

4.    Do not use the product outside the rated operating temperature range to avoid damaging internal optical components.

5.    If a malfunction occurs, contact the manufacturer for repair. Do not disassemble the device yourself.
